Product introduction
Pulverizing Equipment
After being chipped by wood chipper from wood blocks or from tree branches and twigs, those chips can be crushed into fine particulate through the following hammer mill. But in the process, conveyer is demanded too.

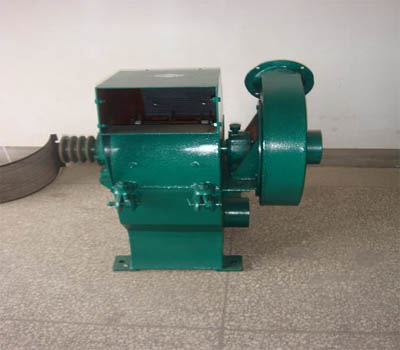

- CPFSJ hammer mill
It different from crusher with cutterhead, is popular with pulverizing tree trimmings, straw, wood chips and other materials with diameter of not more than 50mm. Powder from the pulverizer can stand at 3-5mm in fineness.
Its quick-worn parts such as cutters and screener can be changed and maintained simply.
Parameter Table:
| Model | Name | Power(kw) | Yield(kg/h) | Packing Size(m) | GW(kg) | NW(kg) |
| CPFSJ-01 | Hammer Mill360 | 5.5 | 150-200 | 1.35*0.8*1.2 | 120 | 110 |
| CPFSJ-02 | Hammer Mill400 | 7.5 | 200-300 | 1.4*0.8*1.3 | 150 | 140 |
| CPFSJ-03 | Hammer Mill420 | 11 | 200-400 | 1.5*0.8*1.4 | 200 | 190 |
| CPFSJ-04 | Hammer Mill | 18.5 | 600-700 | 1.66*1.2*1.77 | 560 | 490 |
| CPFSJ-05 | Hammer Mill | 22 | 800-1000 | 1.66*1.2*1.77 | 620 | 560 |
| CPFSJ-06 | Hammer Mill | 30 | 1000-1200 | 1.66*1.2*1.77 | ||
| CPFSJ-08 | Hammer Mill(with conveyer) | 22+1.5 | 800-1000 | 2.0*1.51*1.74 | 760 | 690 |
Note:
Parameter Table:
| Model | CPFSJ-07 Hammer Mill driven by diesel engine |
| (for wood chip / tree trimmings/ wheat straw / plant stalk etc) | |
| Capacity (kg/h) | 700-800 |
| Moisture of feedstock | Moisture max 20- 25% |
| Size of feedstock | Max. diameter 30mm Max. length 300mm for wood materials |
| Final Size of powder | Ø5×5mm |
| Diesel Engine | 22 HP |
Note:
1. The size of crushed particles lies in the specific material attributes and screen mesh dimension. Multiple sieves can be chosen for the hammer mill.
2. As a high-speed rotating component, the motor and the machine at large shall be inspected upon stability and fastness of the rotor, hammer and other parts.
3. Prevent metal scraps, stones and other impurities from falling into the pulverizer to trigger machine damages or injuries to personnel.
4. As one of wearing parts, hammer needs regular inspection. Flip or turn around the hammer when its corner is worn out of rectangular. But the installation location shall not be changed to keep the rotor balanced.
5. For longer or larger materials, they would first be handled into small pieces before put into the pulverizer
- FSJII-C hammer mill
The machine, different from crusher with cutterhead, is popular with pulverizing tree trimmings, straw, wood chips and other materials with diameter of not more than 50mm. Powder from the pulverizer can stand at 3-5mm in fineness.
Its quick-worn parts such as cutters and screener can be changed and maintained simply.
Parameter Table:
| Model | CPFSJ-07 Hammer Mill driven by diesel engine |
| (for wood chip / tree trimmings/ wheat straw / plant stalk etc) | |
| Capacity (kg/h) | 700-800 |
| Moisture of feedstock | Moisture max 20- 25% |
| Size of feedstock | Max. diameter 30mm Max. length 300mm for wood materials |
| Final Size of powder | Ø5×5mm |
| Diesel Engine | 22 HP |
Features:
1. Made of high-carbon alloy steel
2. With the high-speed strong wind suction grinding system, the hammer mill can offer you ideal pulverizing output with durability and stable performance.
3. The multifunctional pulverizer is equipped with dust suction device yet without powder pollution. It also possesses the quality of low temperature, low noise when crushing.
4. With the FSJII-C hammer mill possesses many advantages covering reliable performance, low power consumption and high production efficiency, besides advanced design, reasonable structure and it is capable of crushing varied materials (such as corn, rice husk, etc).
Attention:
Bearings shall be lubricated monthly. After a period of application time, readjust the tightness of the V-belts. The pulverizer shall be cleaned daily to achieve a longer service life. Ensure all fastening components shall be tightened.
