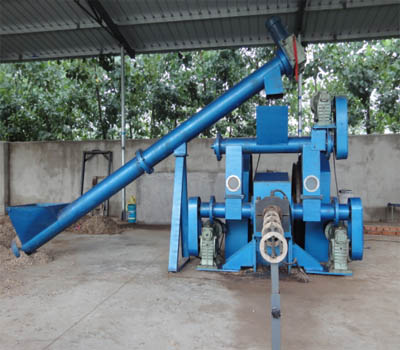

ZBJ-CY sawdust briquette machines can press the straw (agricultural waste) into briquette. The product is biomass fuel. It can be run with electrical power and diesel power. the raw materials are all kind of agricultural wastes. and the moisture can be 5%-30%. The diameter of the raw material is from 8mm to 70mm.

The series consist of belt loading type and screw loading type.

Advantages:
1. Alternative power supply: the ZBJ-CY series briquette machines can be driven by either electric motor or diesel engine to meet the demands from different clients.

2. Combined with automatic auxiliary equipment, the briquetting productivity can be enhanced impressively.

3. An extensive spectrum of material application: both agro and forestry waste can be manufactured by the series briquette machines. Namely, as follows:

Agro waste:cotton stalks, corn cobs, soybean straw, sorghum stalks, millet stalks, rice husks, peanut shells, wheat straw etc.
Forestry waste:wood shavings, bagasse, pomace, pulp sludge, pasture, bark, bamboo shavings, sawdust, leather scraps, etc.
All the raw materials above can be processed into pellets and briquettes, with a higher fuel value suitable for domestic fireplaces, small and medium sized biomass boilers and industrial power and heating productions.

4. Long service period: made of special alloy steel feature high degree of wear resistance, the mould lifespan can be utterly prolonged.

5. Of the series, 2 main types of briquette press can be chosen: the extruding briquette machines with abrasive disc and the mechanical stamping briquetting machines. The abrasive disc extruding type can generally be further divided into three kinds: Ring die design, flat plate design, and ring & flat die design. The diameter of briquettes produced by abrasive disc extruding briquette machines is 30mm * 30mm, while the diameter of mechanical stamping briquetting presses can reach 80mm.

6. Moreover, the shape of mechanical stamping briquettes is diverse, round, square, hexagonal, perforated and other tailored forms.

Parameter table:

Mould (die) parameter table (taking sawdust as feedstock with the moisture content of 15%)

Screw loading type

Mould (die) parameter table (taking sawdust as feedstock with the moisture content of 15%)
