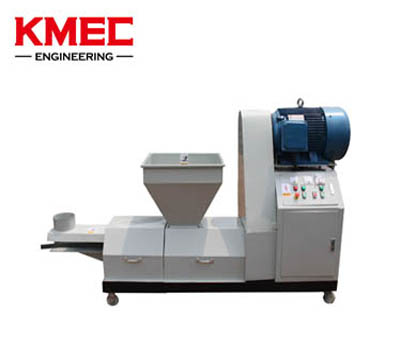

ZBJ-LX Briquette Machine
Wood briquette machine offered by KINGMAN(KMEC) covers a wide range of moulds, namely, according to different requirements for briquette forms, we can provide you with a variety of dies to produce r…
Product introduction
Wood briquette machine offered by KINGMAN(KMEC) covers a wide range of moulds, namely, according to different requirements for briquette forms, we can provide you with a variety of dies to produce round, square and polygon shapes. But technically, the square shape is more commonly used in terms of extruding force and tolerance clearance between the die and the sleeve. Some people may also call it wood charcoal machine or charcoal making machine.
Wood briquette machine can be used in producing high quality wood charcoal stick with sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.
ZBJ-LX Briquette Machine
Parameter table:
| Model | ZBJ-01 | ZBJ-02 | ZBJ-03 | ZBJ-04 | ZBJ-05 |
| Yield (kg/h) | 180-210 | 180-210 | 350-400 | 350-400 | 450-500 |
| Motor power (kw) | 15+6 | 11+6 | 22+9 | 22+9 | 55+27 |
| Briquette density | 1.3g/cm3 | 1.3g/cm3 | 1.3g/cm3 | 1.3g/cm3 | 1.3g/cm3 |
| Weight GW/NW(kg) | 585/500 | 610/570 | 1100/980 | 1300/1100 | 2550/2450 |
| Packing size (m) | 1.7*0.75*1.28 | 1.71*0.75*1.28 | 1.96*0.88*1.62 | 1.96*0.88*1.62 | 2.5*2.0*1.8 |
| Life of the inner forming unit | 1-2 years | 1-2 years | 1-2 years | 1-2 years | 1-2 years |
Note: the warranty period lasts 12 months. And briquette diameter and length can be varied due to different demands, such as the diameters of 30mm, 40mm, 50mm, 60mm and 70mm. Please feel free to contact us for details.
Briquettes
Attention:
If material after being crushed and dried has been suitable for the next step briquetting, there is still certain importance which shall be attached to.
1. The Briquette Presses shall be fixed on a flat foundation.
2. During the process of briquetting, temperature should be adjusted according to extruding situation. The electrical heater covers a wide scope of temperature for your reference. Different raw materials demand distinguished temperatures.
