The reason and solution for strong vibration during operation of briquette machine

Briquette machine is a new type of equipment in charcoal production. Because of its large capacity, high efficiency and low investment, briquette machine is quite popular in charcoal production industries. In the process of using briquette machine, there would be strong vibration of the machine body sometimes. Then, what are the reasons for that? The following are the reasons and the brief treatment of the strong vibration of the briquette machine.



1. Mounting error of hammer in overhaul and assembly.
In order to prevent the rotor weight from losing balance, all the hammers must be turned around together. Otherwise, strong vibration will occur in the operation.
2. The weight difference between the two sets of hammers is more than 5 grams.
Adjust the weight of the hammer to make the weight difference between the two hammers less than 5 grams.
3. Some hammers are too tight and can not swing out in the operation.
After the briquette machine stops, turn the hammer by hand, and find a way to make the hammer move flexibly.
4. The weight of other parts on the rotor is not balanced, then it is necessary to check and adjust the balance carefully.
5. Bending or deformation of main shaft.
The solution is straightening or replacing the shaft.
6. Bearing clearance exceeds limit or damage.
New bearing is generally used to solve the problem.
7. The fixed nut of the base angle of the briquette machine is not fixed or loose in the operation.
The solution is to tighten the nut.

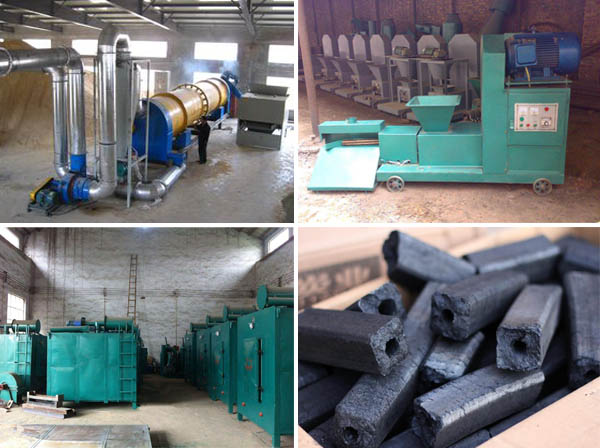

The briquette machine produced by our company can be used to process all kinds of briquettes, including corn cob briquettes, rice husk briquettes, etc. Contact us by emails to get more information about it.
