Biomass Briquetting Equipment

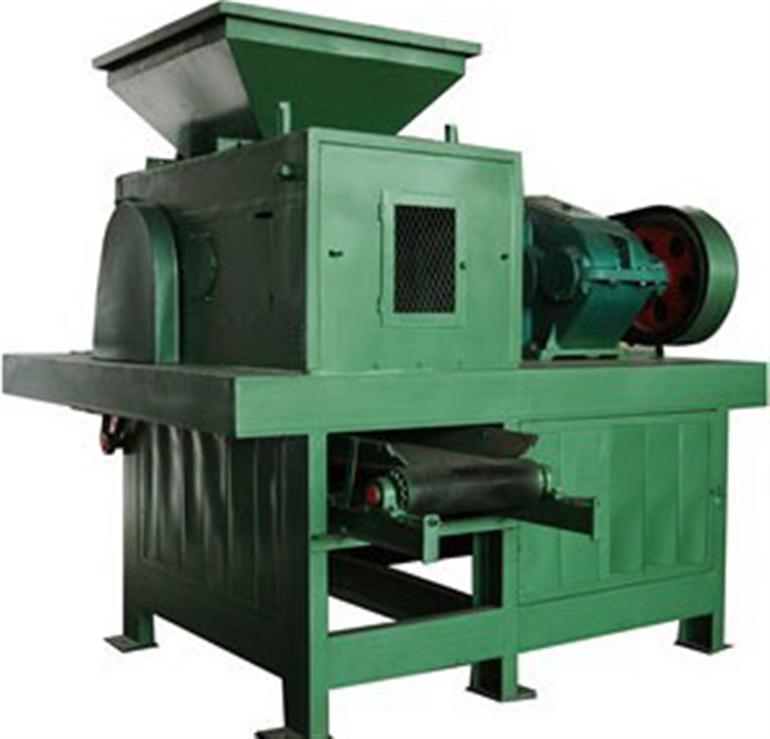

Ball Press Machine-TFMTF

Ball press machine for carbon dust/charcoal dust
The model can be fed with raw material such as charcoal powder, carbon dust, bamboo coal powder, coke powder, shisha carbon, graphite powder, jujube wood charcoal powder, activated carbon and so forth. The appearance of pressed product can be varied as well and chosen as per clients’ demands. It is well serving sectors of durable material, power generation, metallurgy, chemical industry, energy, transportation, heating, husbandry, industry, agriculture and BBQ both in stand-alone production and large-scale production line. The flexibility of the model stays outstanding.



Main technical parameters:

Model Roller Dia. (mm) Yield(t/h) Power (kw) Pressure regulating device Briquette size
TFMTF290 290 0.8-1.5 5.5 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF360 360 2-3 7.5 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF450 450 3-4 13 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF500 500 4-5 18 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF650 650 5-7 25 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF850 850 7-9 30-75 Constant pressure,Hydraulic pressure As per clients' requests
TFMTF1000 1000 11-15 75-130 Constant pressure,Hydraulic pressure As per clients' requests



---------------------------------------------------------------------------------------------------------------------------------------
Link to other ball press machines:
